Execution

Start Kismet​

note

gpsmon and xgps only serve to assist in troubleshooting GPS issues and are not required for Kismet to function.

  1. Ensure the GPS service is running:

    sudo systemctl restart gpsd

  2. (Optional) Ensure that GPS monitoring tools are running in their own windows:

    sudo gpsmon
    sudo xgps

  3. Start the Kismet service:

    sudo systemctl restart kismet

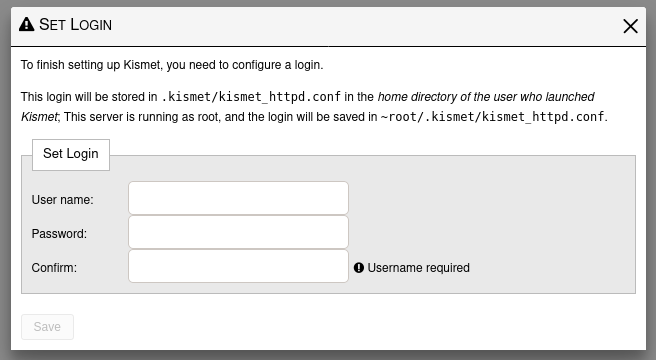

  4. Navigate to the Kismet web UI at http://localhost:2501 within the Kali VM. If logging into Kismet for the first time, configure the initial logon credentials for assessor:

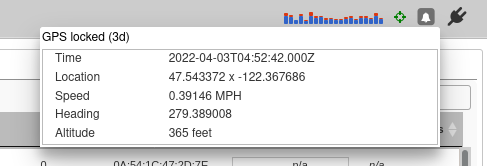

  5. Click on the "target" icon in the top right corner of the web UI to verify that Kismet is receiving GPS data:

tip

When the "target" icon is green then GPS is tracking, if it turns gray then you do not have adequate GPS signal.

War-Drive​

note

Slower movement while war-driving will allow Kismet to collect more data on Wireless SSIDs and result in a more precise assessment of the physical locations of their access points.

Plot the route​

tip

It is recommended to pre-plan the route you will take to war-drive. This can be as simple as taking a screenshot of the area in Google Earth and using MS paint to draw routes indicating different portions of your route. For longer routes that will be conducting via walking, the route should be broken into portions - to account for the MIP battery potentially dying at different points.

Walk/Drive​

Walk/drive around the targeted area with the MIP (GPS dongle and Wi-Fi adapter attached) to allow Kismet to detect Wireless access points as you traverse.

Produce log files​

When complete, stop kismet so that it produces a .kismet log file in /var/log/kismet

sudo systemctl stop kismet
tip

Executing sudo systemctl restart kismet will cause Kismet to produce a log file and immediately start a new one
